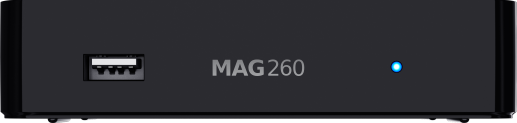

Info about IPTV box MAG260 [EN]
MAG260 is an ultramodern set-top box which offers opportunities for extended customization by the user. The major benefits of this model are the additional opportunities it provides the operators who are developing their applications with the help of Android SDK. It also makes it easy for the users to download and install the applications on their own.
MAG260 works on the 1 Ghz A20 Dual core Cortex A7 processor with 3800DMIPS of performance. Apart from its standard functions MAG260 supports video streaming via SAMBA and DLNA protocols. MAG260’s compact casing houses 2 USB ports and a MicroSD slot for external media storage and content playback. This device is also equipped with a WiFi-adapter.
The set-top box is compatible with standard and smart remote controls and HID devices. MAG260 set-top boxes support an easy system modernization: owing to the preinstalled Javascript API of the basic MAG250 model, they can be easily introduced into the already existing IPTV/OTT projects which are based on Middleware Stalker.
TECHNICAL SPECIFICATIONS [EN]
| Width/depth/height, (mm) |
127/87/30 |
| Weight, g |
190 |
| Processor |
A20 Dual core Cortex A7 |
| RAM |
1 Gb |
| Flash memory |
4 Gb |
| Video |
Mali 400 MP2 |
| Operating system |
Android 4.2 |
| |
ARM architecture |
| |
Install APK files from SD card and Google Play Store. |
| |
Multilingual GUI |
| |
Multitasking |
| |
Support Google browser, Flash10 and HTML5. |
| Middleware supported |
StbEmulator (emulates JS API for MAG200/MAG250) for Stalker, |
| |
Netup, SmartLabs, Netris support. |
| Interfaces |
Audio output S/PDIF |
| |
HDMI 1.4-output |
| |
Composite + stereo A/V output |
| |
Ethernet 100 Mb/s |
| |
USB 2.0 |
| |
Built-in Wi-Fi 2.4GHz b/g/n 150Mb |
| |
MicroSD slot |
| Sources of media content |
PC and NAS in local network. |
| |
Unicast, Multicast. |
| |
Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP) |
| |
USB-devices, microSD cards. |
| Audio сodecs |
MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 layer III (mp3), MPEG-2 AAC (optional), MPEG-4 AAC LC 2-ch/5.1ch (optional), MPEG-4 AAC+SBR 2-h/5.1ch (optional), Dolby Digital (optional), DTS (optional) |
| Audio formats |
MP3, MPA, M4A, WMA (optional), Ogg, WAV, AAC |
| Video modes |
1080i, 1080p, 720p, 576p, 480р, PAL, NTSC |
| Video сodecs |
MPEG1/2 MP@HL, H.264 HP@level 4.1, MPEG4 part 2 (ASP), WMV-9 (optional), VC1 video, XviD; HD video supporting (up to 40 Mbit/s and above) |
| Video containers |
MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT, WMV |
| Image formats |
JPEG, PNG, BMP, GIF, RAW |
| Subtitles |
DVB, SRT, text MKV |
| Playlist formats |
M3U |
| Standard set |
MAG260 Set-Top Box, user manual, Mini jack cable to RCA (A/V), Power adapter 12V 1A, remote control, 2 AA batteries, packaging. |
Warranty: 1 year
Firmware updates: http://wiki.infomir.eu/
ScandiSAT warns you:
There are counterfeit MAG260 Set-Top Boxes made in China available on the market.
Unlike the fake devices, the original MAG260 Set-Top Boxes are made in Europe using high-quality materials and advanced technologies.
Counterfeit TV Set-Top Boxes do not work properly, have a very high rate of defective products, are incompatible with software upgrade and are not covered by warranty.
Buy only original MAG260 IPTV Set-Top Boxes
from authorized dealers like ScandiSAT.dk
In case of doubts concerning what MAG260 Set-Top Boxes you are being sold (original or counterfeit), please contact our sales team.
